January 14, 20253 Axle 40T Flatbed Trailer
$10,000.00




Dimension:12.5m×2.5m×1.55m(customized)
King Pin: 2.00 or 3.5 inch bolt-in king pin
Axle:3 axle
Tire: 12R22.5 or 315/80r22.5(optional)
The 3 Axle 40T Flatbed Trailer, a three-axle 40-ton flatbed trailer, is a transport vehicle designed specifically for heavy cargo transportation. Its three-axis design ensures a strong load capacity, with a total load capacity of up to 40 tons, which is suitable for the transport of a variety of large cargo and containers and can transport containers, bags, cargoes and frames with 2, 3, 4, and multiple Bridges, with a length of 20, 40, and 45 feet. The front baffle can be designed with a height of 1.2 meters and side columns, which can be used to transport log products and customized according to needs.. The overall structure of the trailer is strong and durable, and it is made of high-strength steel, which is precision welded and processed to ensure the stability and durability of the trailer under various harsh road conditions.
The 3 Axle 40T Flatbed Trailer can be equipped with a front baffle, which enhances its transportation safety and practicality. The main function of the front baffle is to prevent the goods from sliding forward or falling off during transportation, thus ensuring the safety of the goods. The front baffle also increases the overall stability of the trailer, especially when transporting heavy loads, which can effectively reduce the risk of rollover caused by uneven weight distribution of the cargo.
The 3 Axle 40T Flatbed Trailer Specification
| Dimension | 12.5m×2.5m×1.55m(customized) |
| Main Beams | Q345 carbon steel material |
| Frame Floor | The thickness is 4mm pattern |
| Axles | 3 axles |
| Landing Gear | FUWA brand 28T heavy duty or Jost Brand 28tons |
| Leaf spring | 90mm*16mm*10Layer |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Thicken Mechanical suspension , reinforced type |
| Tire | 12R22.5 or 315/80r22.5(optional) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Color | Green(optional) |
Related products
-

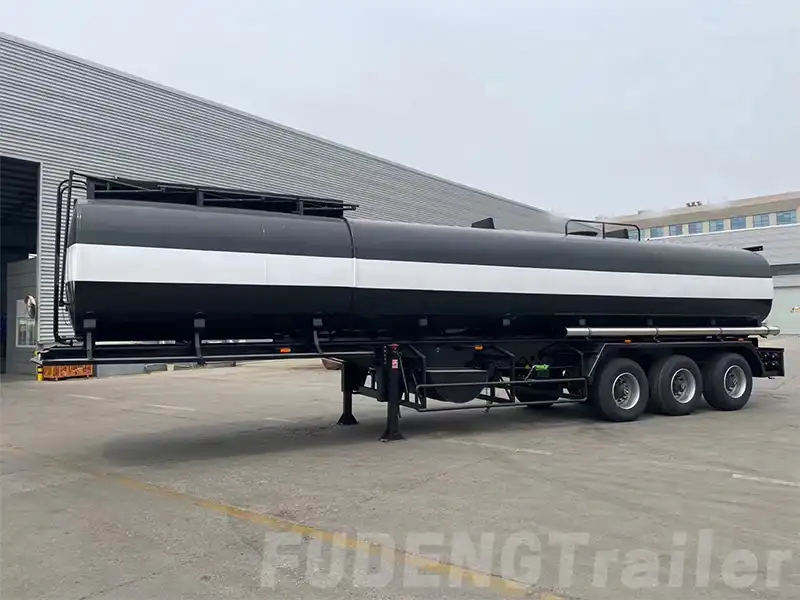

Tri Axles Fuel Tank With Trailer For Sale
